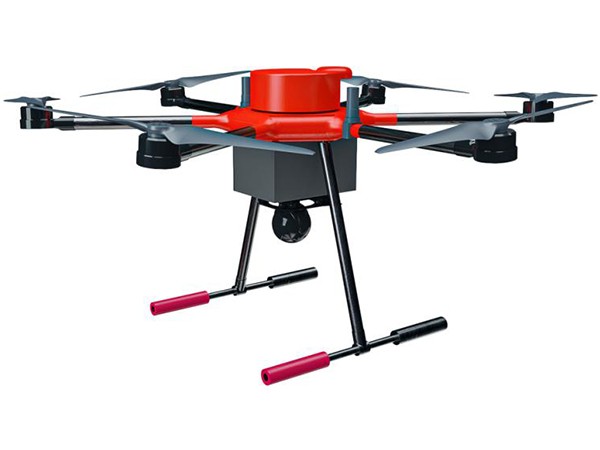

D5 Electric Multi-Rotor Fire-fighting Drone

Description

It is used for urban fire reconnaissance, forest fire reconnaissance, and natural disaster reconnaissance. It can transmit the real-time image of the disaster scene to the command center synchronously, and display it on the mobile terminal. It’s equipped with bomber parachute buffer system, high-definition camera system and intelligent voice playback system.Features:
1. It has the functions of one-button take-off and landing, one-button return, pointing and positioning flight and video storage.
2. The UAV control system can search the target position, and the UAV flies according to the search position.
3. Equipped with an emergency parachute, the parachute will be opened and landed slowly in the event of an accident.
4. Equipped with high-definition camera to ensure that the drone can track the target in real time.
5. The arm can be folded and disassembled without tools, which is convenient for vehicle transportation.

Items	Parameters
Model	D5
Function	Scouting / Shouting / Lighting
Unfolded dimension	12501100600mm
Folded dimension	650600600mm
Maximum payload	5kg
Maximum takeoff weight	15kg
GPS Hover accuracy	Vertical: 0.5m Horizontal: 0.2m
Maximum level flight speed	12m/s
Maximum flight altitude	500m
Wind resistance level	6
Maximum flight time	40min
Operating temperature	-30～60℃
Obstacle perception range	50m
Effective speaker distance	300m
Way of shouting	Recording upload, Real-time shouting, Text broadcast, Memory playback
Luminous flux	21000±3%lm
Total pixels	2.13MP
Thermal imager	640*480,35mm lens,25Hz
Target Tracking	support
Onboard video storage	Support Maximum 128G
